Hygienic Air Conditioning Plants

VensaArt produces both competitive and innovative productions with its hygienic air handling units, excellent environmental applicability and as much smart control units as possible.

V-HKS Series

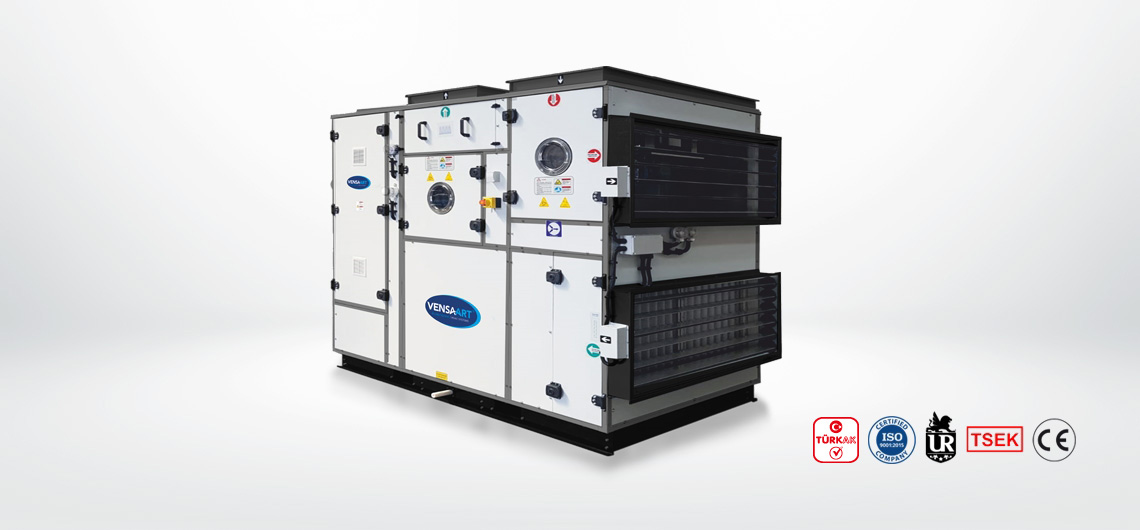

V-HKS Hygienic Air Conditioning Plants Explanation

The carcass structure of the modular cells of VensaArt Packaged Type Hygienic Air Handling Units is formed by mounting special alloyed aluminum extruded profiles or steel profiles to reinforced hygienic corner pieces. Modular cell panels are double-walled; The outer panels are completely removable carcass design, the outer surface is electrostatic powder painted galvanized sheet metal. Panels are fixed on aluminum carcass profiles with special stainless bolts that can be removed from the outside.

The interior surfaces of the units are designed so that they do not contain bacteria and no dead spots are left, and the inner sheet is Imm AISI 304 stainless steel. The outer sheet is Imm electrostatic powder painted galvanized material. The connection of the modules can be made easily by tightening them from inside the unit with durable connection parts.

There are forklift entry points and crane connection points in accordance with the 150 mm feet integrated into the frame of the Hygienic Air Handling Unit, suitable for carrying and placing. It is made of 2 mm electrostatic powder painted galvanized material.

V-HKS Hygienic Air Conditioning Plants Features

Production QualityBody Strength, Air Tightness, Filter By-Pass Ratio, Thermal Transmittance, Thermal Bridging and Body Sound Insulation EN 1886
Structure and PanelSelf Supporting Frame and Double Sheet Sandwich Panels
ProfileAluminum Alloy (Almgsi0.5) / Steel Frame Profiles
Sheet MaterialStainless Steel
Panel Thickness40 mm - 60mm
Air TightnessEPDM Sealed Gaskets to Ensure Full Air Tightness
Heat and Sound InsulationRock Wool / Glass wool
Heating / Cooling CoilDX Coil / Copper Tube Aluminum Fin
Fan SystemBackward Curved Blade Fan / Forward Curved Fan / Plug Fan / EC Motor Fan
MoisteningSterile Steam
Heat RecoveryPlate / Thermal Rotor / Heat Pipe / Water to Air Heat Recovery
Power and RegulationBuilt-in Power and Electricity Regulation Board
Monitoring / ManagementBMS Management
  • Excellent Hygienic Air Control
    1. Unlimited Modular, Flexible and Energy Efficient Hygienic Air Handling Units.
    2. Air Handling Units Produced in Different Sections up to 100.000 m³ / h Air Flow.
  • Hygienic Modularity and Compactness
    1. Optimal Energy Efficiency, Air Quality and Comfort.
    2. Wide, Versatile Product Range and Integrated Electronic / Thermal Regulation.
    3. Energy Saving Special Solutions for All Hygienic Environments.
  • Energy Savings, Low Operation Cost
  • Low Noise Level
  • Strong Carcase Structure
  • Impermeable Structure
  • Smart Control
  • Easy Installation
  • Secure Operation
  • Working Different Condition
